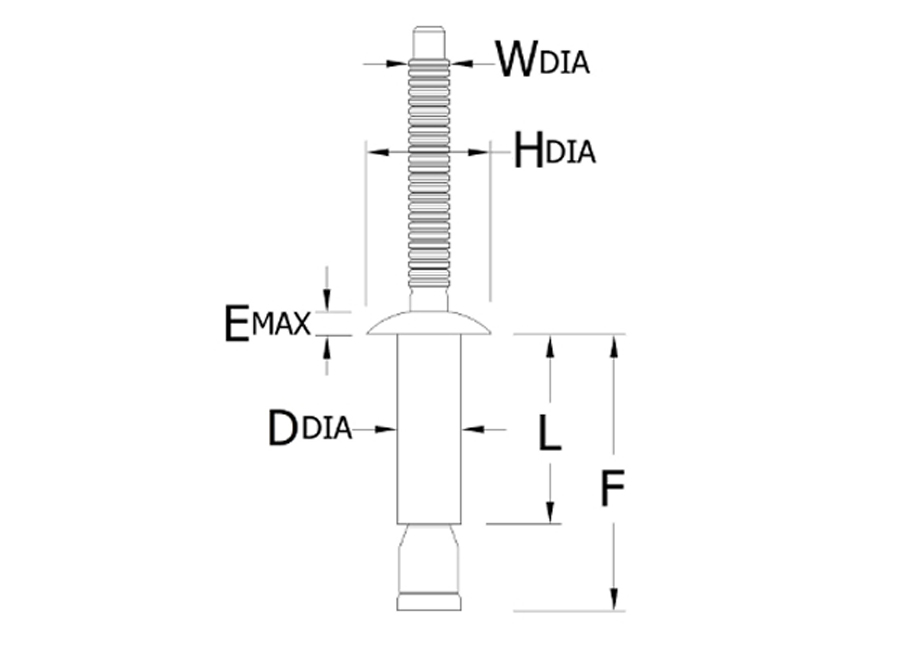

| Protruding Head | |||||
|
|
W | D | H | E | |
| Nom.Rivet Diam. | Hole Size And Drill Number |
Mand.Diam. | Rivet Diam. | Head Diam. | Head Thick. |
| 3/16 | .191-.201 (#11) | .118 | .187 | .375 | .085 |
| 1/4 | .261-.276 (17/64") | .157 | .257 | .500 | .112 |
