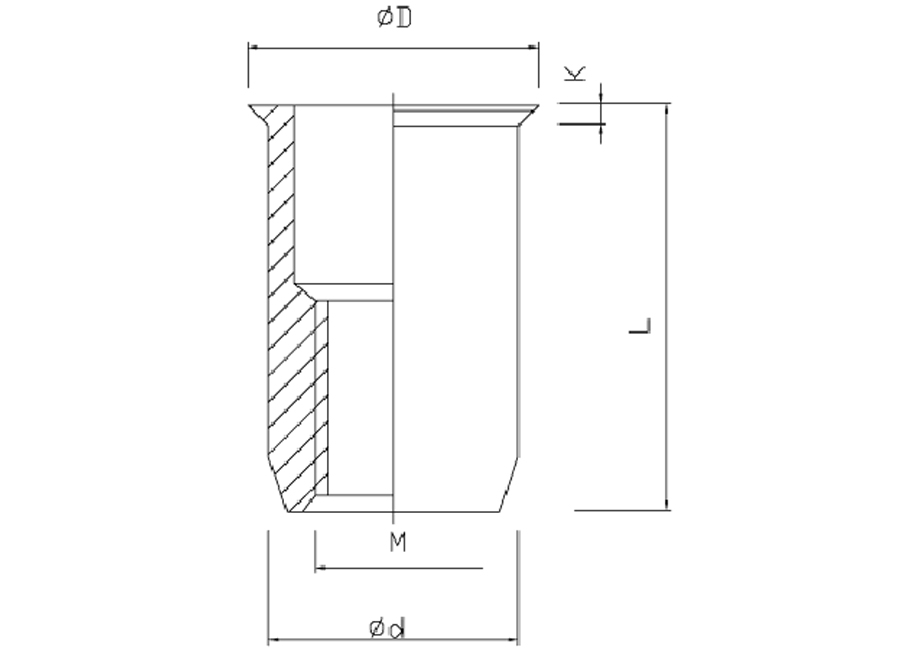

| Thread Size | Part No. | Hole Size | d | D | L | K |
|---|---|---|---|---|---|---|
| M4 | SSM 4-35 | 6.1+0.1 | 5.95-0.08 | 8.5+0.4 | 11.5±0.2 | 1.5+0.2 |
| M5 | SSM 5-40 | 7.1+0.1 | 6.95-0.08 | 9.3+0.4 | 13±0.3 | 1.5+0.2 |
| M6 | SSM 6-45 | 9+0.1 | 8.95-0.08 | 11.3+0.4 | 16±0.3 | 1.5+0.2 |
| M8 | SSM 8-45 | 11.1+0.1 | 10.95-0.08 | 13.5±0.2 | 18.5±0.3 | 1.5+0.2 |
Material: Steel, Aluminum, Brass
