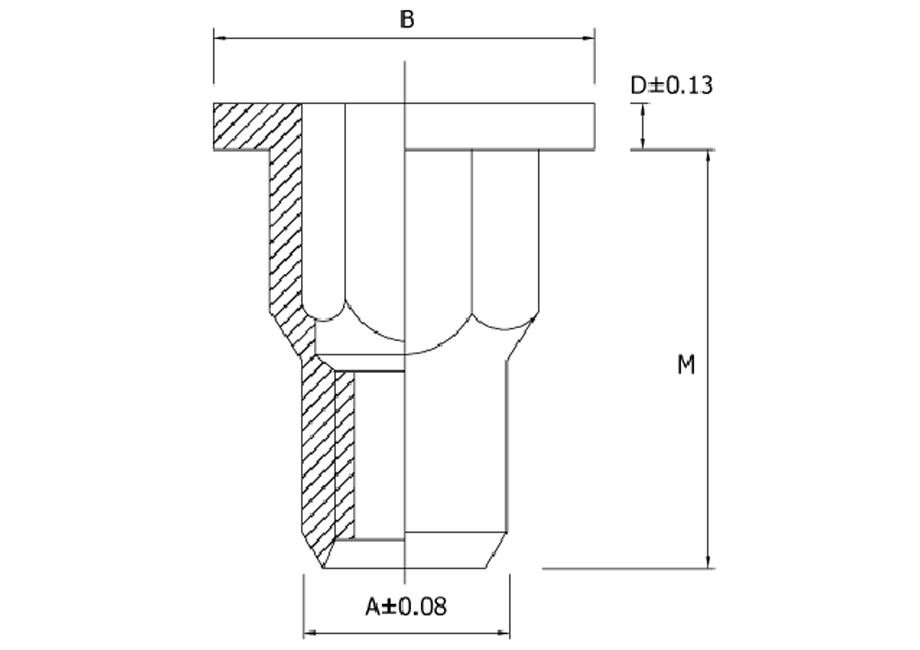

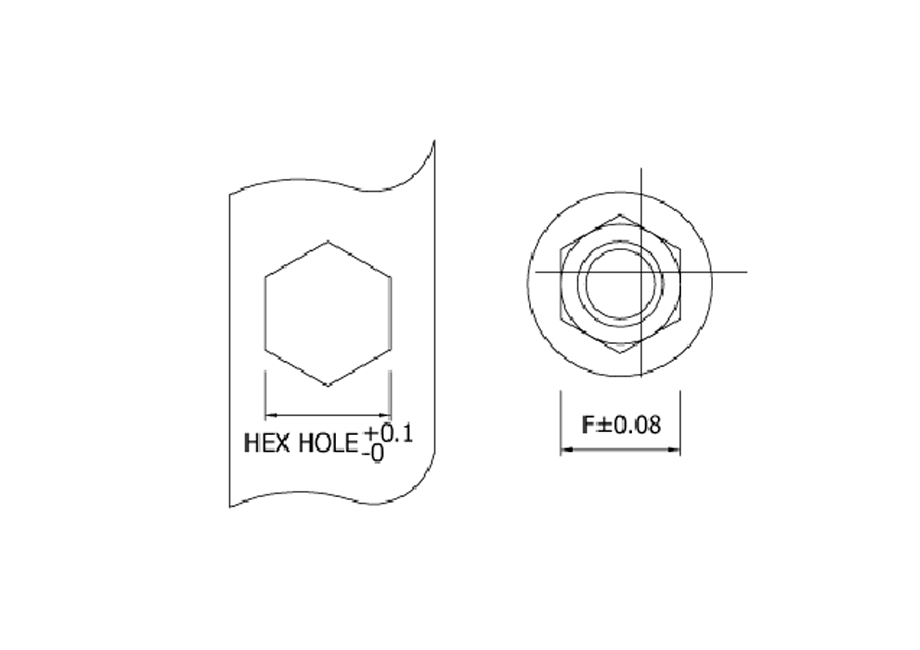

| Thread Size | Part No. | Grip Range | Hole Size (across flats) |
A | B | D | F | M |
|---|---|---|---|---|---|---|---|---|
| M4x0.7 | HR-23M | 0.5-2.0 | 6.0 | 5.89 | 8.79-9.17 | 0.80 | 5.89 | 11.0 |
| M5x0.8 | HR-24M | 0.5-3.0 | 7.0 | 6.89 | 9.79-10.17 | 1.00 | 6.89 | 13.0 |
| M6x1.0 | HR-25M | 0.5-3.0 | 9.0 | 8.89 | 12.80-13.20 | 1.50 | 8.89 | 16.0 |
| M8x1.25 | HR-26M | 0.5-3.0 | 11.0 | 10.89 | 15.68-16.28 | 1.50 | 10.89 | 18.0 |
| M10x1.5 | HR-27M | 1.0-3.5 | 13.0 | 12.89 | 19.30-18.70 | 2.00 | 12.89 | 21.0 |

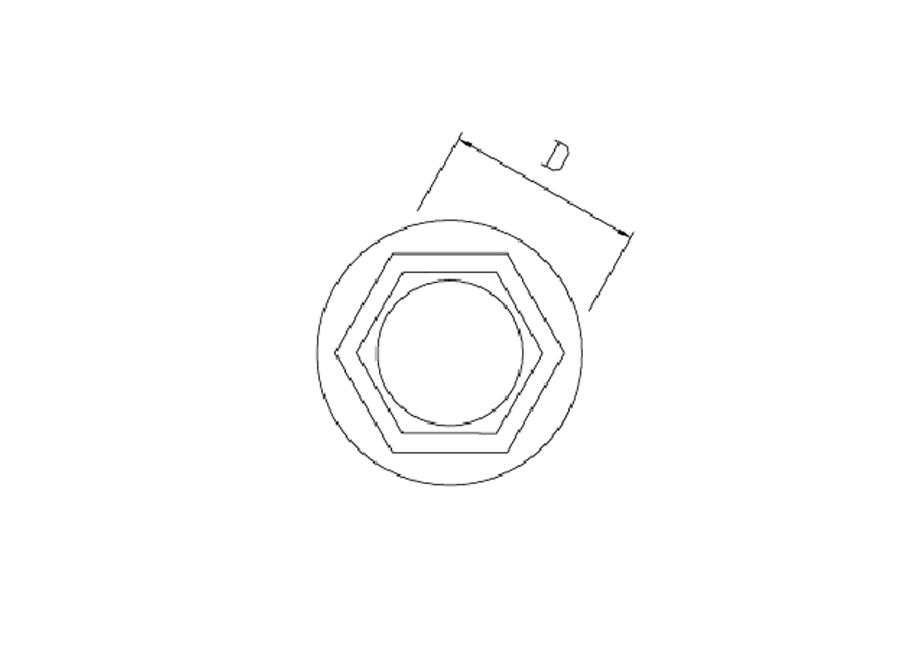

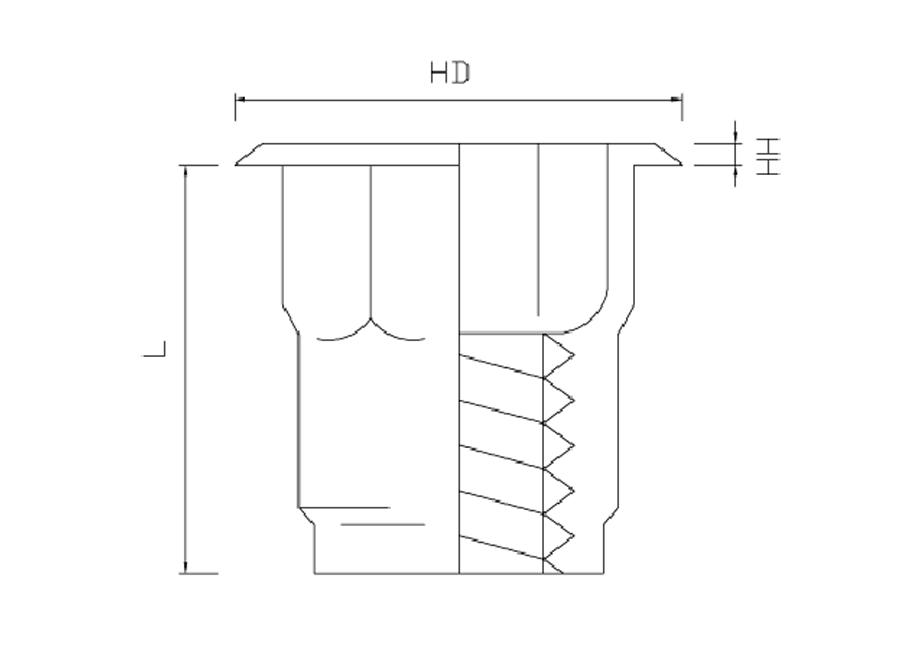

| Thread Size | Part No. | Grip Range | Hole Size (across flats) Min. |
HD Max. |
HH Max. |
D MAX. |
L Max. |
|---|---|---|---|---|---|---|---|
| 4mm | HR-11M | 0.5-1.8 | 6.36 | 7.80 | 0.6 | 6.35 | 10.50 |
| 5mm | HR-12M | 0.5-2.4 | 7.25 | 8.80 | 0.7 | 7.22 | 12.00 |
| 6mm | HR-13M | 0.7-3.0 | 9.65 | 11.20 | 0.7 | 9.62 | 15.00 |
| 8mm | HR-14M | 0.8-3.2 | 10.65 | 12.20 | 0.7 | 10.60 | 16.00 |
Material: Steel, Aluminum, Brass

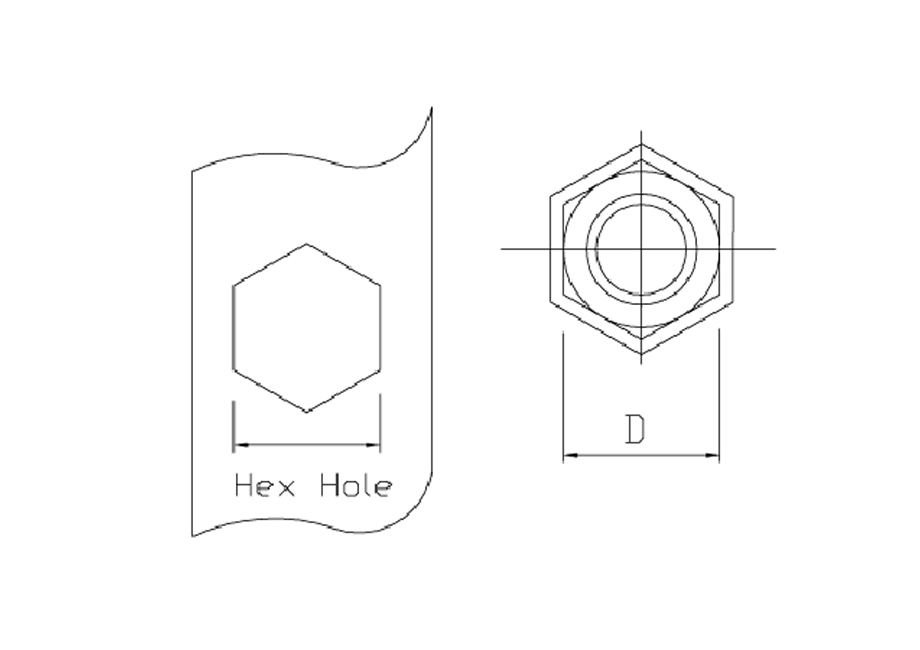

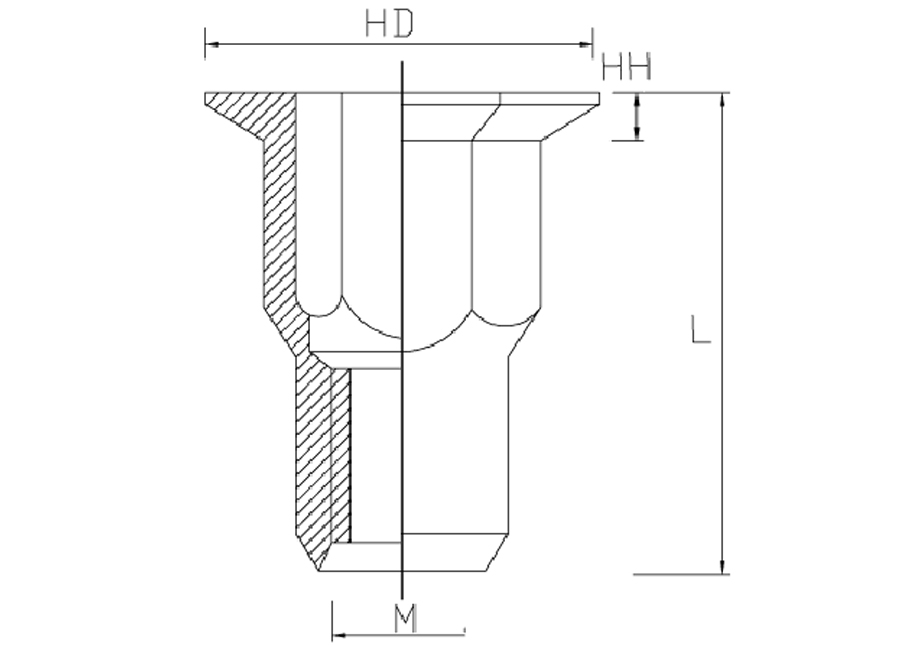

| Thread Size | Part No. | Grip Range | Hole Size (across flats) +0.1 - 0 |
HD ±0.25 |
HH ±0.08 |
L ±0.38 |
D Max. |
|---|---|---|---|---|---|---|---|
| M4x0.7 ISO | HR-01M | 0.50-2.00 | 6.35 | 9.53 | 0.68 | 9.78 | 6.35 |
| M4x0.7 ISO | HR-02M | 2.00-3.30 | 6.35 | 9.53 | 0.68 | 11.05 | 6.35 |
| M5x0.8 ISO | HR-03M | 0.50-3.30 | 7.14 | 9.91 | 0.68 | 11.05 | 7.10 |
| M5x0.8 ISO | HR-04M | 3.30-5.70 | 7.14 | 9.91 | 0.68 | 13.59 | 7.10 |
| M6x1.0 ISO | HR-05M | 0.70-4.20 | 9.53 | 12.96 | 0.76 | 14.86 | 9.50 |
| M6x1.0 ISO | HR-06M | 4.20-6.60 | 9.53 | 12.96 | 0.76 | 17.40 | 9.50 |
| M8x1.25 ISO | HR-07M | 0.70-3.80 | 12.70 | 16.64 | 0.89 | 17.40 | 12.70 |
| M8x1.25 ISO | HR-08M | 3.80-7.90 | 12.70 | 16.64 | 0.89 | 21.46 | 12.70 |
| M10x1.5 ISO | HR-09M | 0.70-3.80 | 12.70 | 16.64 | 0.89 | 17.40 | 12.70 |
| M10x1.5 ISO | HR-10M | 3.80-7.90 | 12.70 | 16.64 | 0.89 | 21.46 | 12.70 |
Material: Steel, Aluminum, Brass
Material: Steel, Aluminum, Brass
