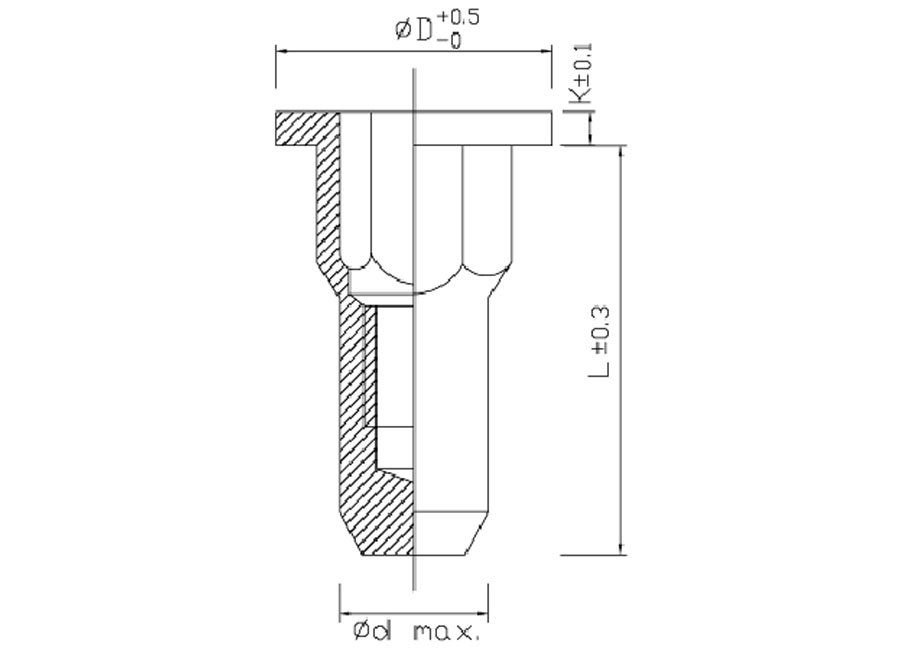

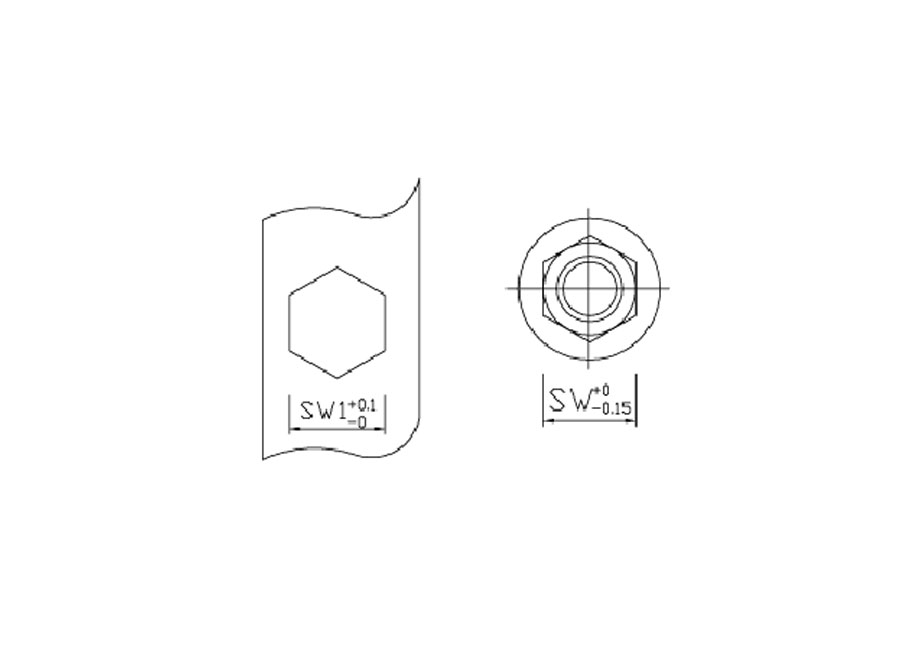

| Thread Size | Grip Range | SW1 | SW | d | D | L | K |
|---|---|---|---|---|---|---|---|
| M4 | 0.5-2.5 | 6.1 | 6.0 | 6.0 | 9.0 | 16.0 | 1.0 |
| M5 | 0.5-3.0 | 7.1 | 7.0 | 7.0 | 10.0 | 18.0 | 1.0 |
| M6 | 0.5-3.0 | 9.1 | 9.0 | 9.0 | 12.0 | 21.0 | 1.5 |
| M8 | 0.5-3.0 | 11.1 | 11.0 | 11.0 | 14.5 | 23.5 | 1.5 |
| M10 | 1.0-3.5 | 13.1 | 13.0 | 13.0 | 16.5 | 26.5 | 2.0 |

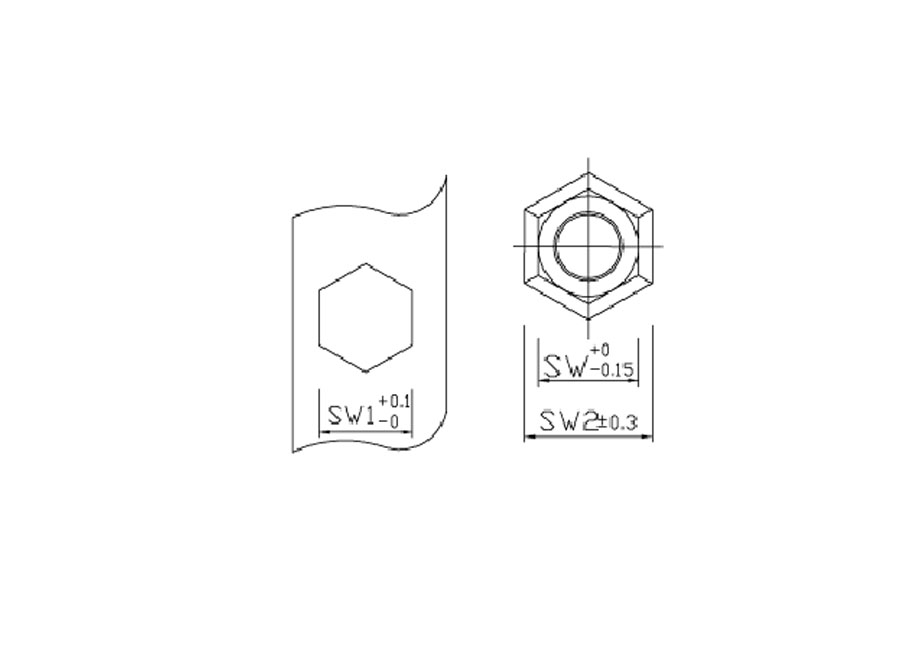

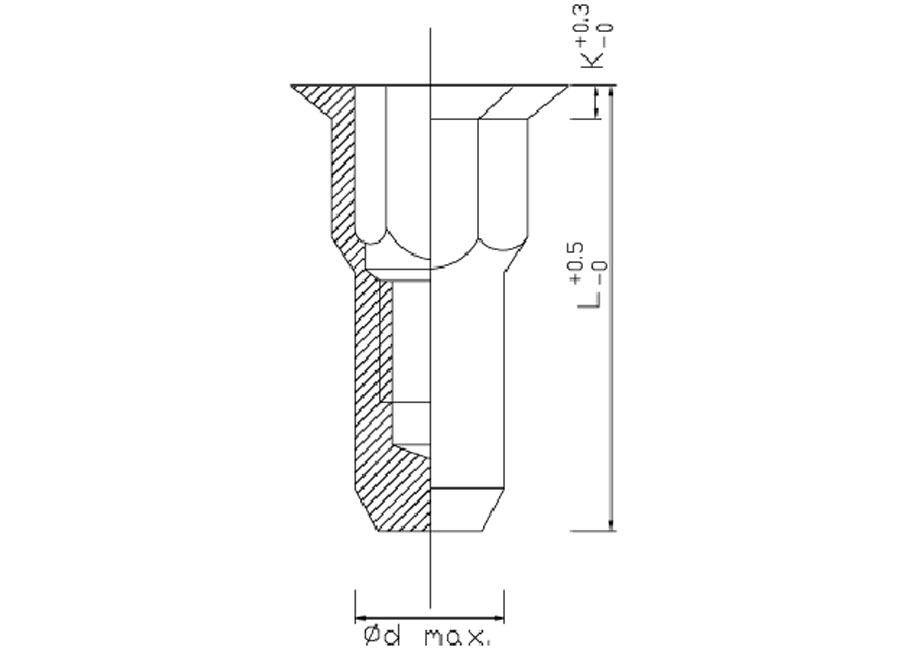

| Thread Size | Grip Range | SW1 | SW | SW2 | d | L | K |
|---|---|---|---|---|---|---|---|
| M4 | 0.5-2.5 | 6.1 | 6.0 | 7.0 | 6.0 | 16.0 | 0.5 |
| M5 | 0.5-3.0 | 7.1 | 7.0 | 8.0 | 7.0 | 18.0 | 0.5 |
| M6 | 0.5-3.0 | 9.1 | 9.0 | 10.0 | 9.0 | 21.0 | 0.5 |
| M8 | 0.5-3.0 | 11.1 | 11.0 | 12.0 | 11.0 | 23.5 | 0.5 |
| M10 | 1.0-3.5 | 13.1 | 13.0 | 14.2 | 13.0 | 26.5 | 0.7 |
Material: SUS302 / SUS316
Material: SUS302 / SUS316
