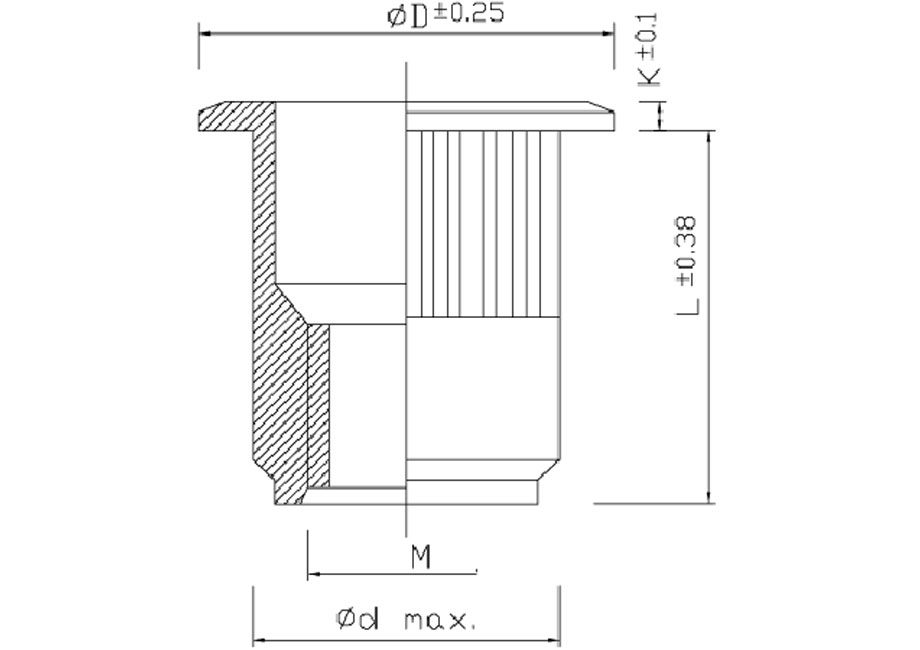

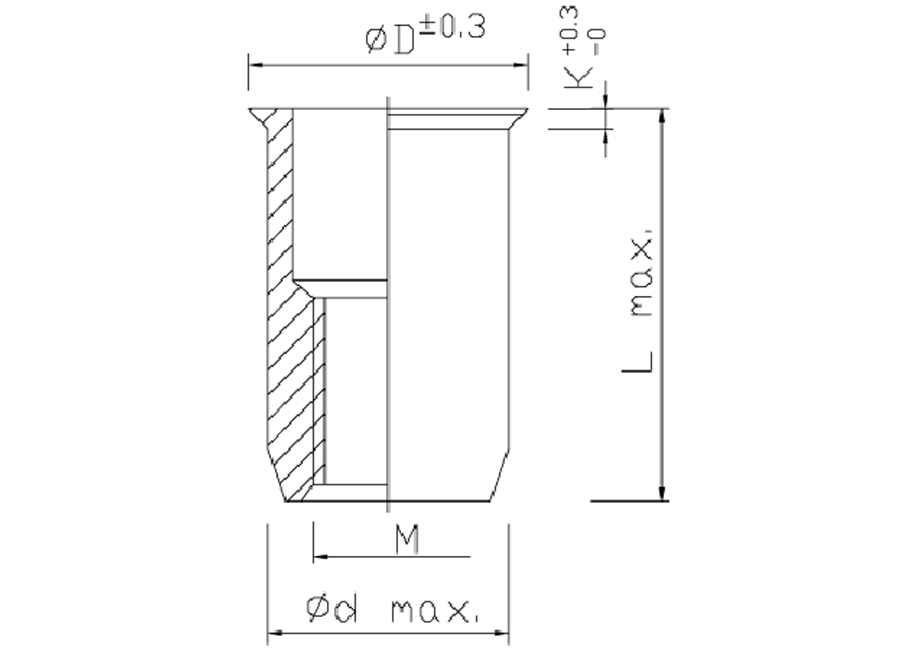

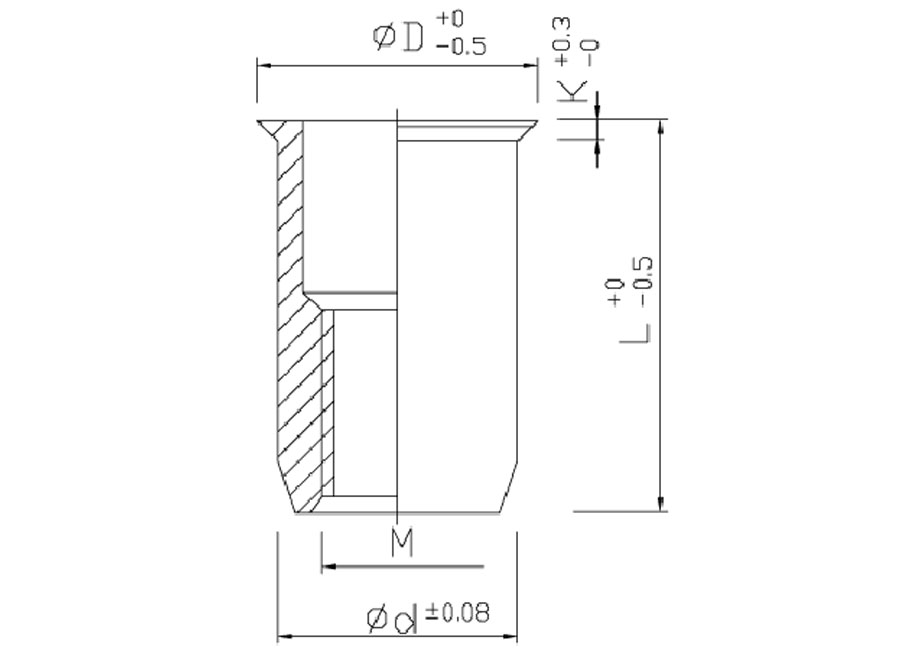

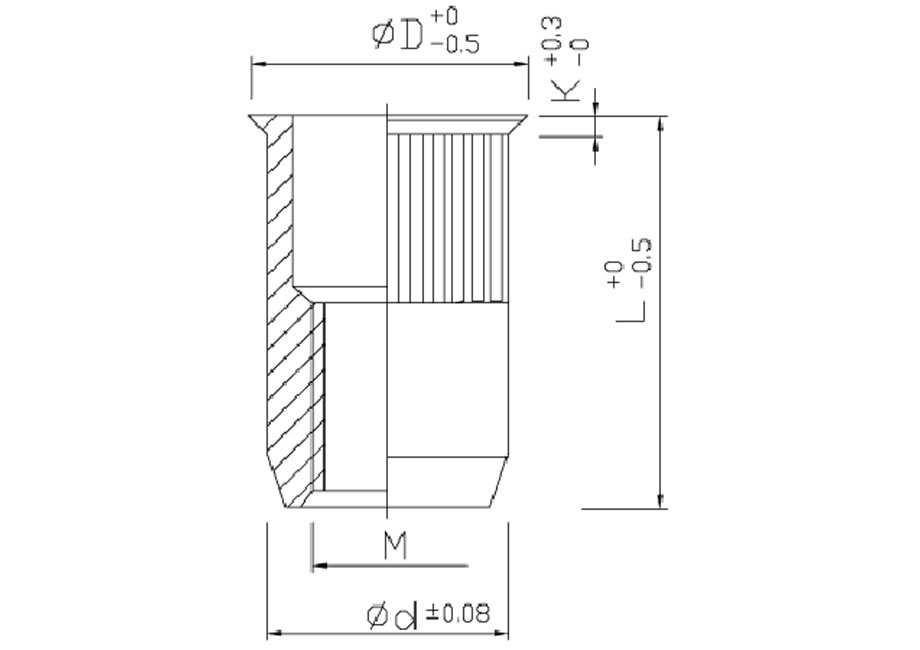

| Thread Size | Grip Range | Hole Size Min./Max. |
d | D | L | K |
|---|---|---|---|---|---|---|
| M3 | 0.5 - 1.5 | 4.75 / 4.84 | 4.72 | 5.5 | 9.2 | 0.5 |
| M4 | 0.5 - 2.0 | 6.35 / 6.44 | 6.32 | 7.0 | 10.5 | 0.5 |
| M5 | 0.5 - 3.0 | 7.14 / 7.23 | 7.11 | 8.0 | 12.0 | 0.5 |
| M6 | 0.5 - 3.0 | 9.53 / 9.61 | 9.50 | 10.5 | 14.6 | 0.5 |
| M8 | 0.5 - 3.0 | 10.60 / 10.68 | 10.57 | 11.5 | 16.2 | 0.5 |
| Thread Size | Grip Range | Hole Size +.01 / -0 |
d | D | L | K |
|---|---|---|---|---|---|---|
| M3 | 0.5-2.0 | 5.0 | 4.9 | 6.0 | 9.0 | 0.5 |
| M4 | 0.5-2.5 | 6.0 | 5.9 | 7.0 | 11.0 | 0.5 |
| M5 | 0.5-3.0 | 7.0 | 6.9 | 8.0 | 12.0 | 0.5 |
| M6 | 0.5-3.0 | 9.0 | 8.9 | 10.0 | 14.0 | 0.5 |
| M8 | 0.5-3.0 | 11.0 | 10.9 | 12.0 | 16.0 | 0.5 |
| M10 | 1.0-3.5 | 13.0 | 12.9 | 14.2 | 19.0 | 0.7 |
Material: SUS302 / SUS316

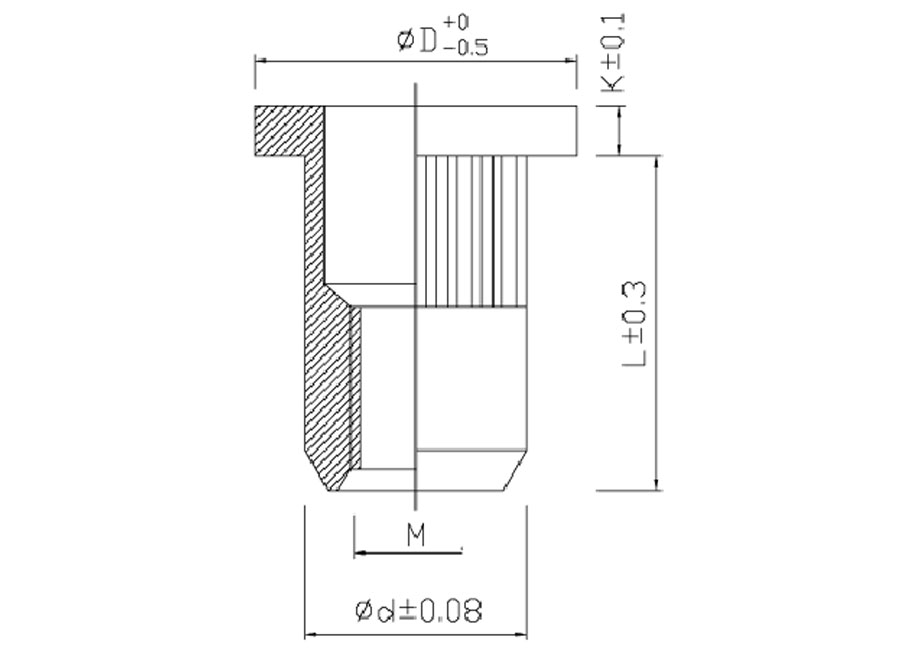

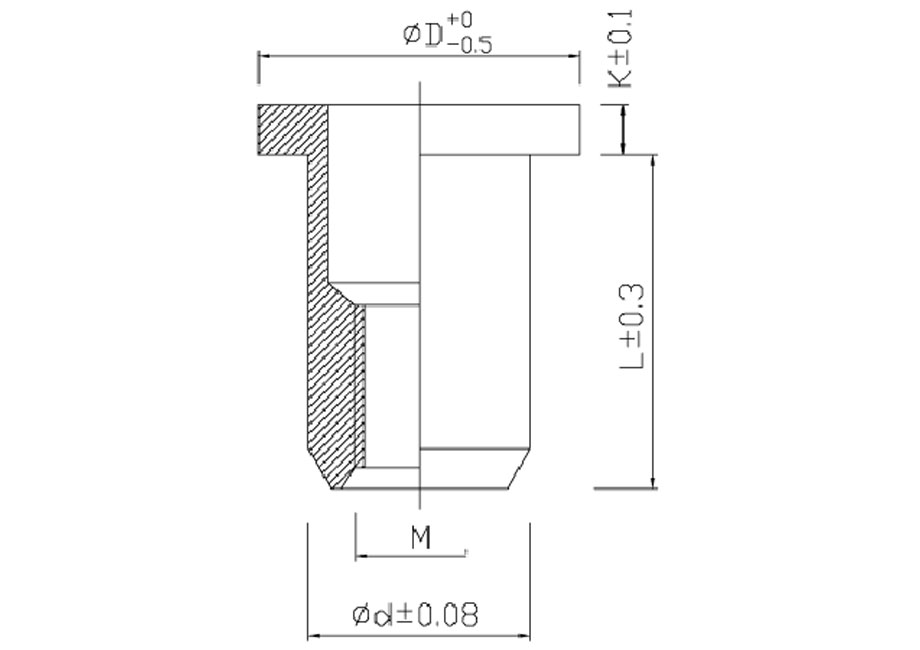

| Thread Size | Grip Range | Hole Size +.01 / -0 |
d | D | L | K |
|---|---|---|---|---|---|---|
| M4 | 1.5-4.0 | 6.0 | 5.9 | 9.0 | 12.0 | 1.5 |
| M5 | 1.5-4.5 | 7.0 | 6.9 | 10.0 | 13.5 | 1.5 |
| M6 | 1.5-4.5 | 9.0 | 8.9 | 12.0 | 16.0 | 1.5 |
| M8 | 1.5-4.5 | 11.0 | 10.9 | 14.0 | 18.0 | 1.5 |
Material: SUS302 / SUS316

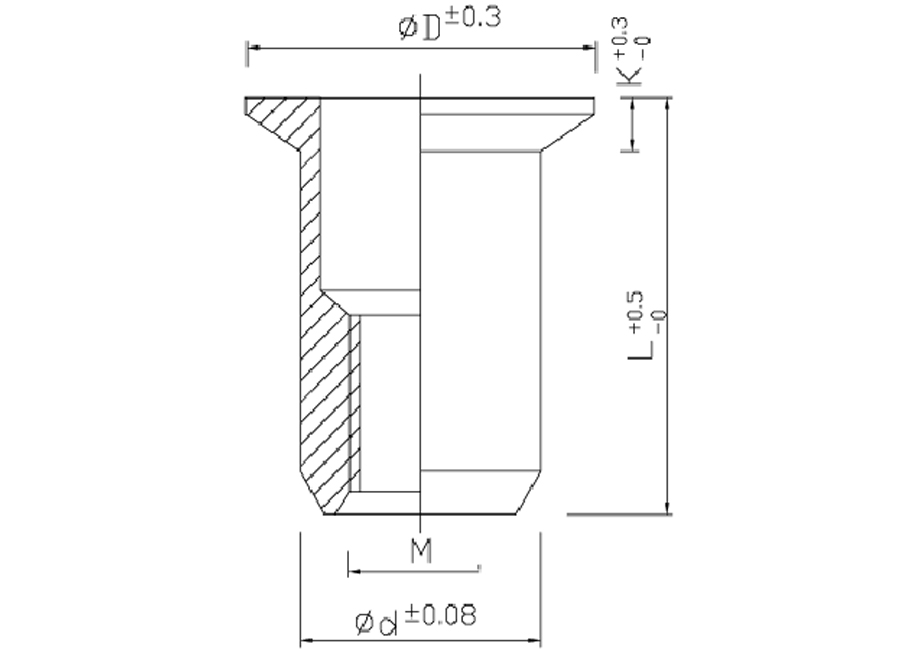

| Thread Size | Grip Range | Hole Size +0.15 / -0 |
d | D | L | K |
|---|---|---|---|---|---|---|
| M4 | 0.5-2.0 | 6.75 | 6.73 | 9.9 | 10.7 | 0.8 |
| M5 | 0.5-3.3 | 7.60 | 7.52 | 10.5 | 12.1 | 0.8 |
| M6 | 0.7-4.2 | 10.00 | 9.91 | 12.7 | 14.7 | 1.0 |
| M8 | 0.7-3.8 | 13.50 | 13.46 | 17.4 | 17.5 | 1.0 |
| M10 | 0.7-3.8 | 13.50 | 13.46 | 17.4 | 17.5 | 1.0 |
Material: SUS302 / SUS316

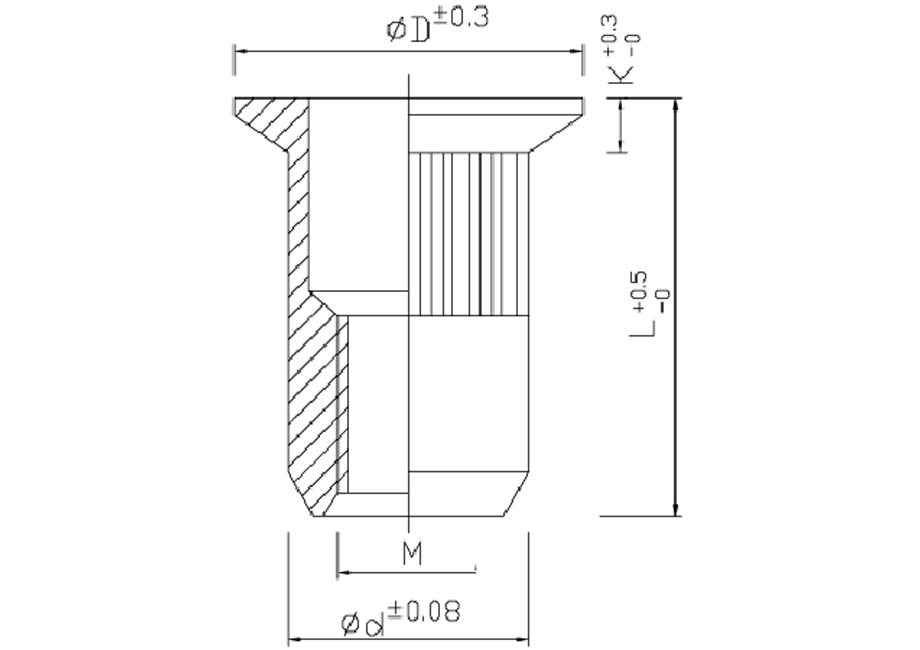

| Thread Size | Grip Range | Hole Size +.01 / -0 |
d | D | L | K |
|---|---|---|---|---|---|---|
| M3 | 0.5-2.0 | 5.0 | 4.9 | 8.0 | 9.0 | 0.8 |
| M4 | 0.5-2.5 | 6.0 | 5.9 | 9.0 | 11.0 | 1.0 |
| M5 | 0.5-3.0 | 7.0 | 6.9 | 10.0 | 12.0 | 1.0 |
| M6 | 0.5-3.0 | 9.0 | 8.9 | 12.0 | 14.0 | 1.5 |
| M8 | 0.5-3.0 | 11.0 | 10.9 | 15.0 | 16.0 | 1.5 |
| M10 | 1.0-3.5 | 13.0 | 12.9 | 17.0 | 19.0 | 2.0 |
Material: SUS302 / SUS316
Material: SUS302 / SUS316
