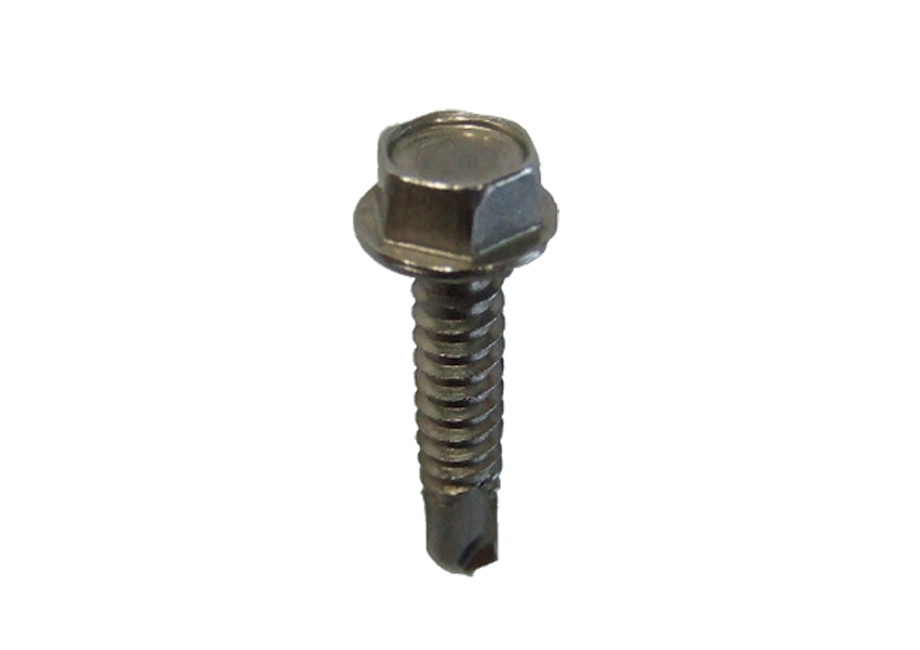

Hex. Washer Head
Material：SUS 410 Stainless Steel
Features：Weatherproof, Acid rain & Sodium resistant
Uses：To extend construction used life such as Steel factory building, seaside building, High Humidity factory building, Indoor swimming pool, Stainless Steel Shelter, Etc.
Material：SUS 302, 305, 316 Stainless Steel
Features：Non-Magnetic, Dustproof
Uses：To pierce through Aluminum doors and windows, Bakelite plate, engineering plastic, Etc.
| Part No. |
Size |
Din St |
Length(mm) |
Point No. |
MaterialThickness(mm) |
| HW06010BK |
#6 – 20X3/8” |
3.5 |
10 |
2PT |
0.9-1.5(0.9-2.5) |
| HW06013BK |
#6 – 20X1/2” |
3.5 |
13 |
2PT |
0.9-1.5(0.9-2.5) |
| HW06019BK |
#6 – 20X3/4” |
3.5 |
19 |
2PT |
0.9-1.5(0.9-2.5) |
| HW08013BK |
#8 – 18X1/2” |
3.5 |
13 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08016BK |
#8 – 18X5/8” |
3.5 |
16 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08019BK |
#8 – 18X3/4” |
3.5 |
19 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08025BK |
#8 – 18X1” |
3.5 |
25 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08032BK |
#8 – 18X1-1/4” |
3.5 |
32 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08038BK |
#8 – 18X1-1/2” |
3.5 |
38 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW08050BK |
#8 – 18X2” |
3.5 |
50 |
2PT/3PT |
0.9-2.0(0.9-2.5) |
| HW10013BK |
#10 – 16X1/2” |
4.8 |
13 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10016BK |
#10 – 16X5/8” |
4.8 |
16 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10019BK |
#10 – 16X3/4” |
4.8 |
19 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10025BK |
#10 – 16X1” |
4.8 |
25 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10032BK |
#10 – 16X1-1/4” |
4.8 |
32 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10038BK |
#10 – 16X1-1/2” |
4.8 |
38 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW10050BK |
#10 – 16X2” |
4.8 |
50 |
2PT/3PT |
1.0-2.0(1.0-5.0) |
| HW12019BK |
#12 – 14X3/4” |
5.5 |
19 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW12025BK |
#12 – 14X1” |
5.5 |
25 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW12032BK |
#12 – 14X1-1/4” |
5.5 |
32 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW12038BK |
#12 – 14X1-1/2” |
5.5 |
38 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW12050BK |
#12 – 14X2” |
5.5 |
50 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW12075BK |
#12 – 14X3” |
5.5 |
75 |
2PT/3PT |
1.0-3.0(1.0-6.0) |
| HW14019BK |
1/4 – 14X3/4” |
6.3 |
19 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14025BK |
1/4 – 14X1” |
6.3 |
25 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14032BK |
1/4 – 14X1-1/4” |
6.3 |
32 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14038BK |
1/4 – 14X1-1/2” |
6.3 |
38 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14050BK |
1/4 – 14X2” |
6.3 |
50 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14075BK |
1/4 – 14X3” |
6.3 |
75 |
3PT |
1.0-3.0(2.8-6.0) |
| HW14100BK |
1/4 – 14X4” |
6.3 |
100 |
3PT |
1.0-3.0(2.8-6.0) |
